*TOP* Godex ZX430 300 dpi 4” Thermal Transfer Printer, 4IPS USB 2.0

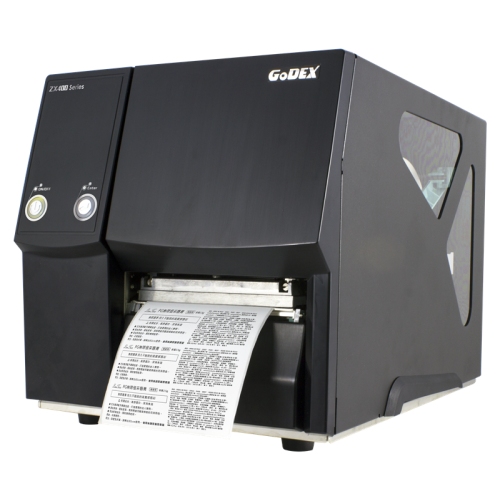

ZX430 300 dpi 4” Thermal Transfer Printer, 4IPS USB 2.0

ZX430 und ZX430i
ZX430 und ZX430i sind die beste Kombination zwischen Kompaktheit und Robustheit.
Viele Kunden wünschten sich einen robusten Industriedrucker, der aber nicht zu viel Platz wegnimmt. Hier ist er.

Unterschied zur ZX420 und ZX420i Serie:
ZX430 hat 300 dpi. ZX420 hat 203 dpi.

Die ZX400/ZX400i Series sind perfekt geeignet für den Verkauf, Warenhäuser, Logistik und Transportfirmen, für Regierungen und Behörden und für den Medizinalbereich.
Eigenschaften:
- USB2.0 interface and optional WIFI & Bluetooth module for multiple applications.
- 32 MB SDRAM and 128 MB Flash memory - including 60 MB available for user.
- Wide range media type supporting
- 300 dpi (12 dots/mm) resolutions; print speed is up to 6"/150 mm per second.
- Supports 450 meter ribbon and  8 inch diameter label (3"core) available for bulk printing.

Spezifikationen
Print Method  Thermal Transfer / Direct Thermal
Resolution  300 dpi (12 dot/mm)
Print Speed  4 ips (102 mm/s)
Print Width  4.16” (105.7mm)
Print Length  Min. 0.16” (4 mm)** ; Max. 73.19“(1859 mm)
Processor  32-bit RISC CPU
Memory  Flash 128 MB Flash (60 MB for user storage)
SDRAM 32 MB
Sensor Type  Adjustable reflective sensor and transmissive sensor, left aligned
Media  Type Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width
Tear : Min. 1” (25.4 mm) – Max. 4.64” (118 mm)
Cutter : Max. 4.61” (117 mm)
Dispenser / Rewind : Max. 4.64” (118 mm)
Thickness Min. 0.003” (0.076 mm) – Max. 0.01” (0.25 mm)
Label roll diameter
Max. 8” (203.2 mm) with 3" (76.2 mm) core
Max. 6” (152.4 mm) with 1.5" (38.1 mm) core
Max. 5" (127 mm) with 1" (25.4 mm) core
Core diameter Min. 1 " (25.4 mm) – Max. 3" (76.2 mm)
Ribbon  Types Wax, wax/resin, resin
Length Max. 1476’ (450 m)
Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm)
Ribbon roll diameter 3” (76.2 mm)
Core diameter 1” (25.4 mm)
Printer Language  EZPL, GEPL, GZPL auto switch
Software  Label design software
GoLabel (for EZPL only)
Driver
Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008? MAC? Linux
DLL
Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Windows 10
Resident Fonts  Bitmap Fronts : 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
Download Fonts  Bitmap Fonts
90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian Fonts
16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001) 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
TTF Fonts
TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
Barcodes  1-D Bar Codes
China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, ISBT – 128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Random Weight, Standard 2 of 5, Telepen, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, UCC 128, UCC/EAN-128 K-Mart
2-D Bar Codes
Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39
Code Pages  Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8?UTF16BE?UTF16LE
Graphics  Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces  ? USB 2.0 (B-Type)
Control Panel  • 1 Power on/standby button with green color LED backlight
• 1 Calibration button at rear panel
• 1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red)
Power  Auto Switching 100-240V AC, 50-60Hz
Real Time Clock  Standard
Environment  Operation temperature 41°F to 104°F (5°C to 40°C)
Storage temperature -4°F to 140°F (-20°C to 60°C)
Humidity  Operation 20-85%, non-condensing
Storage 10-90%, non-condensing
Agency Approvals  CE (EMC)?FCC Class B?CB?UL?cUL?CCC
Dimension  Length 15.86” (403 mm)
Height 10.79” (274 mm)
Width 10.24” (260 mm)
Weight  23.81lbs (10.8 Kg), excluding consumables
Options  Cutter (Dealer Install)
Parallel port adaptor module (Centronic female 36-pin)(Dealer Install)
Bluetooth (Dealer Installer)
Wireless LAN (IEEE 802.11 b/g/n) (Dealer Install)
External label rewinder
Label Dispenser (Dealer Install)
